Traclite & Hylite

Hylite and Traclite controllers have been designed as cost effective solutions for the modernisation and  repair market.
They share many features and the flexible nature of their design enables us to keep these in stock for short lead times which makes them ideal for breakdown situations.

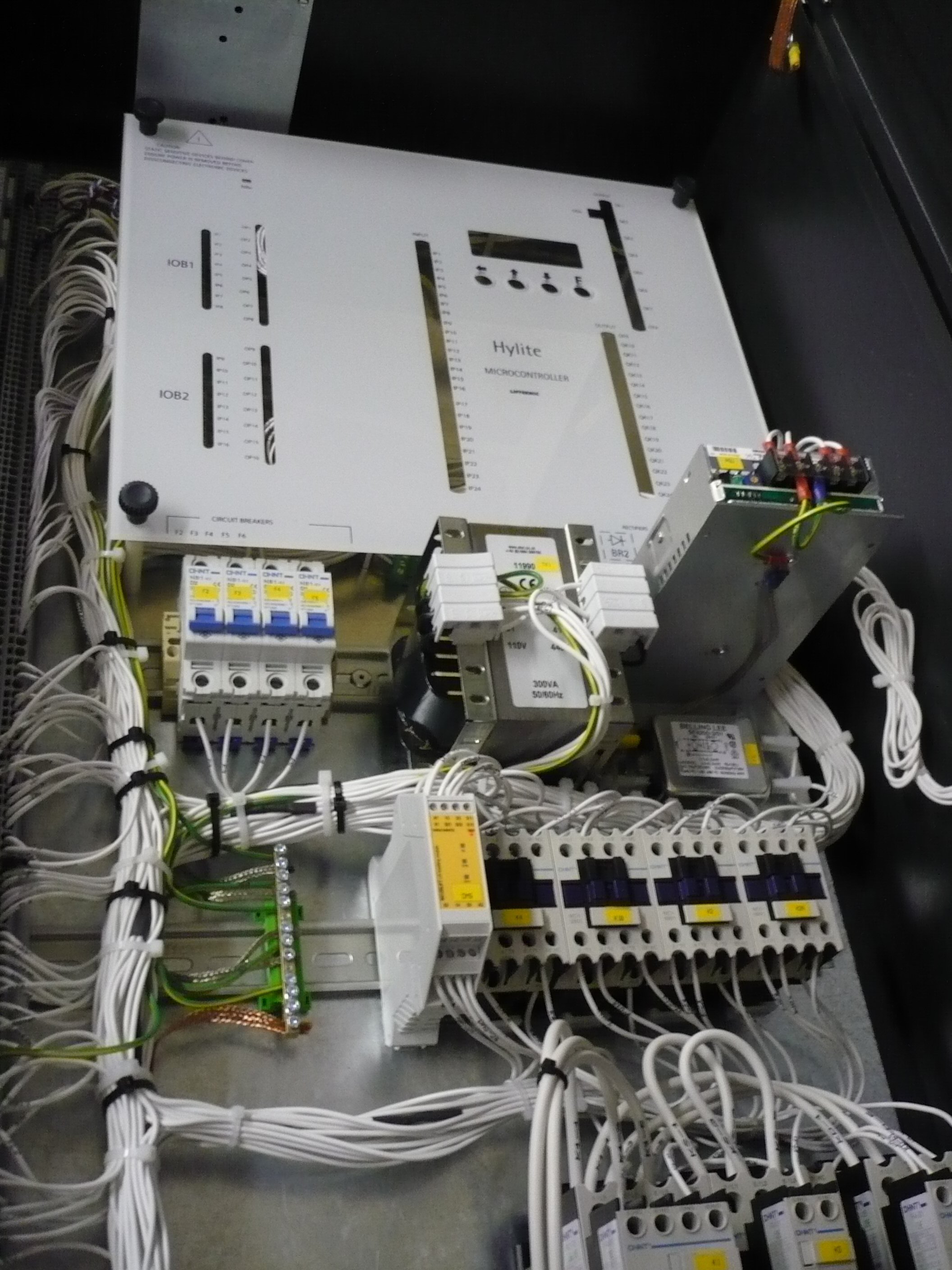

Hylite Controller

Introduction
The Hylite control system is the product of many years experience and investment in lift control technology. It is commitment to innovation that has seen Lifteknic rise to become one of the global market leaders for lift control systems. The Hylite controller is based on the Qube control system and optimised for use with hydraulic lift systems.
Design & Build Quality
Only the highest quality components and manufacturing techniques are used throughout production, resulting in a highly reliable product that can be considered without question as a sound investment in the future of a lift installation.
Floor Capability
The Hylite control system serves up to 8 floors in any call mode (i.e. APB, non-selective collective, down collective or full collective) with all signals being wired directly back to the controller. Where DDA compatibility is required, a landing CAN network is utilised and the landing calls and associated call registration buzzer are interfaced to the main controller via a universal interface, connected to the landing CAN network at each floor.
Door Capability
The Hylite control system provides controls for a single door operator but may be configured to operate two door operators in non-selective mode to suit the specific application.
Pump systems
The Hylite system can be adapted to suit any site condition and is available to suit any pump format that includes the following:
Star Delta
Direct on line
Soft Start
Some of the valve blocks currently supported by the Hylite lift control system are;
• Omar
• GMV
• Blain
• Bucher
• Algi
The philosophy behind the Hylite dictates that an interface to any pump/valve system must be possible, allowing maximum flexibility and choice for the end-user or installer.



Traclite Controller

Introduction
The Traclite control system is the product of many years experience and investment in lift control technology. It is commitment to innovation that has seen Lifteknic rise to become one of the global market leaders for lift control systems. The Traclite controller is based on the Qube control system and optimised for use with AC geared machines with speeds up to 1.6m/s.
Floor Capability
The Traclite control system serves up to 8 floors in any call mode (i.e. APB, non-selective collective, down collective or full collective) with all signals being wired directly back to the controller.
Where DDA compatibility is required, a landing CAN network is utilised and the landing calls and associated call registration buzzer are interfaced to the main controller via a universal interface, connected to the landing CAN network at each floor.
Door Capability
Drives
The Traclite control system is targeted specifically at AC geared installations operating in open loop up 1.0m/s or closed loop up to 1.6m/s.

The Unidrive SP by Control Techniques is used in conjunction with the Traclite lift control system.
Features
Standard cabinet size 1200H x 600W* x 300D (* 720W including braking resistor)
Open loop operation up to 1.0m/s
Closed loop operation up to 1.6m/s
Geared AC machines only
Simplex or duplex operation only
Up to 8 floors
Handwinding system c/w 24Vdc battery for buzzer & tapehead back-up supply
Contactorless operation
3-wire supply (no neutral required)
