Indicator Overlay Kit

The Indicator overlay kit is designed for the retrofitting of digital position indicators to existing lift control systems.

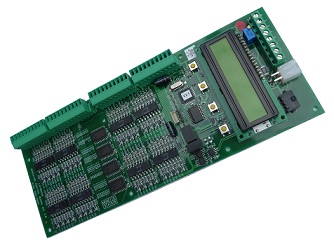

The main component is the encoder driver board that has 32 inputs (see Photo 1) dedicated to the typical signals that are available on lift control panels.
It is compatible for use with the Lifteknic range of CAN bus indicators that allow quick and simple on site installation.
These can be supplied as Surface mounted or in kit form with a Lens.

A variety of predefined templates are provided that cover most of the common floor character sequences and messages.
However complete custom user programing of the characters is also possible through the intuative menu structure accessed through the four user buttons.
The unit also has test and diagnostic modes that are available through the menu to aid commissioning.

It is also compatible with our optional CAN bus SD speech card (See Photo 2), that is designed to clip on to the unit when voice annunciation is required.
The speech card uses a Micro SD to store the messages in MP3 or WAV format for ease of programing.
The kit is supplied with all the necessary Landing bus cables and connectors.

For price enquiries please state type and quantity of indicators, if speech is required and distance from Lowest floor to controller.
Please see DDA overlay kit installation manual and brochure for further details on download page.

Photo 2


Photo 1
